Fischer Audio Oldskool 70s Measurement's report - Reference Audio Analyzer

Reports / Fischer Audio / Oldskool 70s - report for a pro

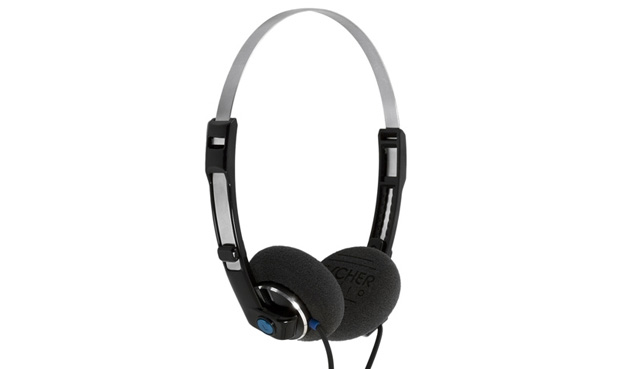

Fischer Audio Oldskool 70s (report for a pro)

After testing in the benchmark mode in the Reference Audio Analyzer software, the data is added to the online database of the RAA website.

You can view the test results on the comparison pages and summary reports for beginners and professionals. You can go to the desired report or comparison/selection service through the menu on this page. Additionally, you can go to the comparison pages from any graph in this report and add other tested products for direct comparison.



This is a summary report of headphones for professionals.

You can additionally look for Fischer Audio Oldskool 70s






Sensitivity average in band from 100 Hz - 10 kHz119.1dB/V SPL
104.9dB/mW SPL
Impedance average in band from 40 Hz - 15 kHz38.0ohm
For 90 dB SPL, a voltage is required-29.1dBV
0.035VRMS
Taking into account the peak factor of 9 dB for the music signal-20.1 dBV
0.099VRMS
Measurements were performed on the stand:HDM1


Frequency response Fischer Audio Oldskool 70s headphone

АЧХ - Стенд: HDM1

Your browser does not support Canvas
Graphics setting view
Channel

Range

Smoothing


Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.



Impedance / Electric phase Fischer Audio Oldskool 70s headphone

Your browser does not support Canvas
Graphics setting view
Channel


Channel:LeftRight
Impedance average in band from 40 Hz - 15 kHz38.0 38.0ohm
Resistance at 1 kHz35.8 35.8ohm
Resistance at 500 Hz36.8 36.8ohm
The minimum value in band from 40 Hz - 15 kHz35.5 35.5ohm
The maximum value in band from 40 Hz - 15 kHz46.1 46.1ohm


Your browser does not support Canvas
Graphics setting view
Channel

Range


Channel:LeftRight
Phase deviation is the average in the range 40 Hz - 15 kHz1.0 1.0°
Phase at 1 kHz-1.3 -1.3°
Phase at 500 Hz-3.1 -3.1°
The minimum value in band from 40 Hz - 15 kHz-5.2 -5.2°
The maximum value in band from 40 Hz - 15 kHz10.2 10.2°



Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.



Frequency response and sensitivity Fischer Audio Oldskool 70s headphone

Your browser does not support Canvas
Graphics setting view
Channel

Smoothing


Channel:LeftRight
Sensitivity average in band from 100 Hz - 10 kHz118.7 119.5dB/V SPL
Sensitivity average in band from 100 Hz - 10 kHz104.5105.3 dB/mW SPL
Sensitivity at 1 kHz113.9115.5dB/V SPL
Sensitivity at 500 Hz114.7116.6dB/V SPL


Your browser does not support Canvas
Graphics setting view
Type of chart

SPL


SPLVoltageCurrentPower
dB SPLdBVVRMSdB(mA)mAdBmmW
60-59.10.001-30.70.029-44.90.000
70-49.10.003-20.70.092-34.90.000
80-39.10.011-10.70.29-24.90.003
90-29.10.035-0.730.92-14.90.032
100-19.10.119.32.9-4.90.32
110-9.10.3519.39.25.13.2
1200.871.129.329.115.132.1
13010.93.539.391.925.1321



Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.



Other summary reports for Fischer Audio Oldskool 70s headphone

report for a newbie

Your browser does not support CanvasA simple report for beginners with explanations of the main characteristics.

Compatibility with amplifier sources

Your browser does not support CanvasA report evaluating the compatibility of Fischer Audio Oldskool 70s with various amplifier sources.

Target curves and equalization

Your browser does not support CanvasA report with an assessment of compliance with target curves and recommended settings for Fischer Audio Oldskool 70s equalization



More detailed

Measurements of Fischer Audio Oldskool 70s were carried out by Roman Kuznetsov on the hardware-software complex RAA.

The Fischer Audio Oldskool 70s test was conducted as a black box test, without regard to cost and prestige. This is the basic principle for making measurements, measurement reports and developing tests in RAA.

I believe that it is important to do not make an absolute assessment of the device, but an aggregate assessment when working together with a source amplifier and taking into account external factors. This allows you to effectively reveal the potential of the entire set of devices or to make a more optimal choice of components.




Kuznetsov Roman
Founder of RAA



Known by the nickname romanrex
Аuthor of articles iXBT.com
