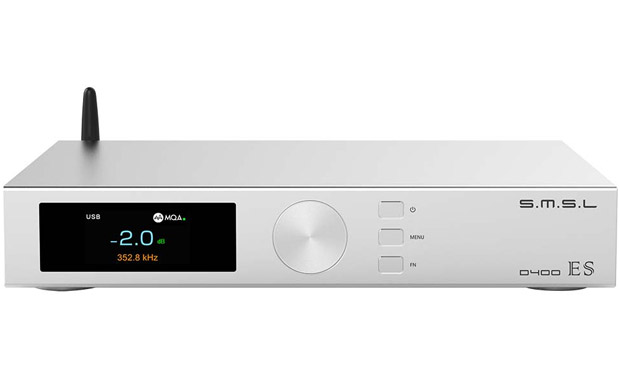

SMSL D400 ES

LINEAR FAST (XLR)
About this report
This is a report for professionals with a suite of tests for line output devices. Alternative version of the report for "dummies" in development.

A suite of tests for the line-out can be used for headphone or speaker output if in this mode it is possible to use the device as a source for connecting an external amplifier or if such a test suite can give more information about the implementation of the DAC in the device.

Line-out, differences from the output for headphones and speakers





Test report - general data SMSL D400 ES (as Line Out mode)

Your browser does not support Canvas
Your browser does not support Canvas
Your browser does not support Canvas
Your browser does not support Canvas

Max voltage output at 0 dBFS12.0dBV
4.0VRMS





Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.





Frequency response SMSL D400 ES LINEAR FAST (XLR) (as Line Out mode)

Your browser does not support Canvas
Graphics setting view
Channel

Range

Frequency band


Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.



Harmonic Distortion vs Level SMSL D400 ES LINEAR FAST (XLR) (as Line Out mode)

Your browser does not support Canvas
Graphics setting view
Channel

Comparison by

Harmonic, number


Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.



Crosstalk SMSL D400 ES LINEAR FAST (XLR) (as Line Out mode)

Your browser does not support Canvas
Graphics setting view
Channel

Range

Your browser does not support Canvas
Graphics setting view
Channel


Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.





Spectrum of Total Harmonic Distortion (THD) SMSL D400 ES LINEAR FAST (XLR) (as Line Out mode)

Your browser does not support Canvas
Graphics setting view
Channel

Level @ dBFS

Range


Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.





Spectrum of Multitone Distortion SMSL D400 ES LINEAR FAST (XLR) (as Line Out mode)

Your browser does not support Canvas
Graphics setting view
Channel

Range

Level @ dBFS

Range


Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.





Spectrum of Intermodulation Distortion (IMD) - SMPTE SMSL D400 ES LINEAR FAST (XLR) (as Line Out mode)

Your browser does not support Canvas
Graphics setting view
Channel

Level @ dBFS

Range

Range


Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.





Spectrum of Intermodulation Distortion (IMD) - CCIF SMSL D400 ES LINEAR FAST (XLR) (as Line Out mode)

Your browser does not support Canvas
Graphics setting view
Channel

Level @ dBFS

Range


Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.





More detailed

Measurements of SMSL D400 ES LINEAR FAST (XLR) were carried out by Roman Kuznetsov on the hardware-software complex RAA.

The SMSL D400 ES LINEAR FAST (XLR) test was conducted as a black box test, without regard to cost and prestige. This is the basic principle for making measurements, measurement reports and developing tests in RAA.




Kuznetsov Roman
Founder of RAA



Known by the nickname romanrex
Аuthor of articles iXBT.com
