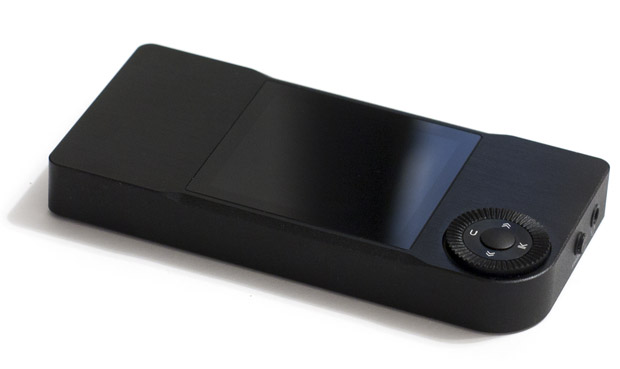

Test report Shanling M2 Gradual

Test report - general data Line Out from DAC Shanling M2 Gradual

Frequency response


Graphics setting view
Frequency band, Hz:
Range, dB:
Type test:

General results Shanling M2 Gradual
Channel
Summary (Right + Left)
Variation in frequency response in band from 100 Hz to 10 kHz, dB
-0,01, 0,00
Max voltage output at 0 dBFS, VRMS
1,41
Max voltage output at 0 dBFS, dBV
2,97
Max voltage output at 0 dBFS, dBu
5,19
Harmonic distortion at 0,0 dBFS @ 1 kHz, dB
-98,2
Total harmonic distortion at 0,0 dBFS @ 1 kHz, %
0,001226
Harmonic distortion at -3,0 dBFS @ 1 kHz, dB
-101,7
Total harmonic distortion at -3,0 dBFS @ 1 kHz, %
0,000825

The table shows a most important technical characteristics of Shanling M2 Gradual

*Center channel headphone is received by averaging between left and right channels

Test conditions




Report content

Detailed measurements report of technical characteristics

Frequency response Line Out from DAC Shanling M2 Gradual


Graphics setting view
Frequency band, Hz:
Range, dB:
Channel:
Type test:

Frequency response Shanling M2 Gradual
Channel
Left
Right
Variation in frequency response in band from 100 Hz to 10 kHz, dB
-0,01, 0,00
-0,01, 0,00

Crosstalk Line Out from DAC Shanling M2 Gradual


Graphics setting view
Range, dB:
Channel:

Crosstalk Shanling M2 Gradual
Crosstalk at the frequency 100 Hz, dB
-102,9
Crosstalk at the frequency 1000 Hz, dB
-90,3
Crosstalk at the frequency 10000 Hz, dB
-70,5



Crosstalk Phase Line Out from DAC Shanling M2 Gradual


Graphics setting view
Channel:




Noise floor spectrum Line Out from DAC Shanling M2 Gradual (High resolution graph)


Graphics setting view
Range, dB:
Channel:
Scale:





Spectrum of Total Harmonic Distortion (THD) Line Out from DAC Shanling M2 Gradual (High resolution graph)


Graphics setting view
Range, dB:
Channel:
Level, dBFS:
Scale:

Harmonic distortion
Shanling_M2 Gradual
Harmonic distortion at 0,0 dBFS @ 1 kHz, dB
-98,2
Total harmonic distortion at 0,0 dBFS @ 1 kHz, %
0,001226
Harmonic distortion at -3,0 dBFS @ 1 kHz, dB
-101,7
Total harmonic distortion at -3,0 dBFS @ 1 kHz, %
0,000825





The levels of harmonics when applying signal 1 kHz 0 dBFS
Shanling_M2 Gradual
Harmonic, number
1
2
3
4
5
6
7
8
9
10
The level of harmonics, dB
0,0
-102,5
-103,0
-110,1
-105,5
-117,3
-123,4
-123,3
-121,1
-129,4
Harmonic, number
11
12
13
14
15
16
17
18
19
20
The level of harmonics, dB
-120,4
-129,0
-132,4
-133,7
-136,3
-137,9
-135,4
-138,3
-149,0
-140,4


The levels of harmonics when applying signal 1 kHz -3 dBFS
Shanling_M2 Gradual
Harmonic, number
1
2
3
4
5
6
7
8
9
10
The level of harmonics, dB
-3,0
-106,3
-112,2
-116,8
-116,8
-126,6
-124,8
-136,4
-132,6
-147,8
Harmonic, number
11
12
13
14
15
16
17
18
19
20
The level of harmonics, dB
-134,6
-153,3
-150,1
-154,4
-138,3
-153,8
-153,6
-153,4
-149,1
-153,7
The data in the tables correspond to by average value of left and right channels

Spectrum of Dynamic Range (-60 dBFS) Line Out from DAC Shanling M2 Gradual (High resolution graph)


Graphics setting view
Range, dB:
Channel:
Scale:





Sine low ammplitude spectrum -90 dBFS Line Out from DAC Shanling M2 Gradual (High resolution graph)


Graphics setting view
Range, dB:
Channel:
Scale:





Spectrum of Intermodulation Distortion (IMD) - SMPTE Line Out from DAC Shanling M2 Gradual (High resolution graph)


Graphics setting view
Frequency band, Hz:
Range, dB:
Channel:
Level, dBFS:
Scale:





Spectrum of Intermodulation Distortion (IMD) - CCIF Line Out from DAC Shanling M2 Gradual (High resolution graph)


Graphics setting view
Range, dB:
Channel:
Level, dBFS:





Spectrum of Multitone Distortion Line Out from DAC Shanling M2 Gradual (High resolution graph)


Graphics setting view
Range, dB:
Channel:
Level, dBFS:
Type test:




Spectrum of Noise Distortion Line Out from DAC Shanling M2 Gradual (High resolution graph)


Graphics setting view
Range, dB:
Channel:
Level, dBFS:





Spectrum of Jitter Line Out from DAC Shanling M2 Gradual (High resolution graph)


Graphics setting view
Frequency band, Hz:
Range, dB:
Channel:
Type test:




The accuracy of the playback speed Shanling M2 Gradual
Fundamental tone 11025 Hz, Hz
11025,0000
Variance from 11025 Hz, Hz
0,0000



THD vs output voltage of line out Shanling M2 Gradual


Graphics setting view
Channel:
Type test:

THD vs output voltage of line out Shanling_M2 Gradual
Max voltage output at 0 dBFS, VRMS
1,41
Max voltage output at 0 dBFS, dBV
2,97
Max voltage output at 0 dBFS, dBu
5,19




Total Harmonic Distortion vs Level (dBFS) Line Out from DAC Shanling M2 Gradual


Graphics setting view
Channel:
Level, dBFS:





Total Harmonic Distortion vs Level (dBFS)Line Out from DAC Shanling M2 Gradual


Graphics setting view
Channel:
Type test:





Spectrum of IMD SMPTE vs Level (dBFS) Line Out from DAC Shanling M2 Gradual


Graphics setting view
Frequency band, Hz:
Channel:
Level, dBFS:





Spectrum of IMD CCIF vs Level (dBFS) Line Out from DAC Shanling M2 Gradual


Graphics setting view
Channel:
Level, dBFS:





Spectrum of Multitone Distortion vs Level (dBFS) Line Out from DAC Shanling M2 Gradual


Graphics setting view
Channel:
Level, dBFS:
Type test:





Spectrum of Noise Distortion vs Level (dBFS) Line Out from DAC Shanling M2 Gradual


Graphics setting view
Channel:
Level, dBFS:





Impulse response Line Out from DAC Shanling M2 Gradual


Graphics setting view
Time, ms:
Channel:





Impulse Response Envelope (ETC - Energy Time Curve) Line Out from DAC Shanling M2 Gradual


Graphics setting view
Time, ms:
Range, dB:
Channel:





Step response Line Out from DAC Shanling M2 Gradual


Graphics setting view
Time, ms:
Channel:





Aliasing Line Out from DAC Shanling M2 Gradual


Graphics setting view
Channel:
Type test:




Checking for correctness of reproduction signals depth more than 16-bit from Line Out from DAC Shanling M2 Gradual


Graphics setting view
Channel:
Type test:
