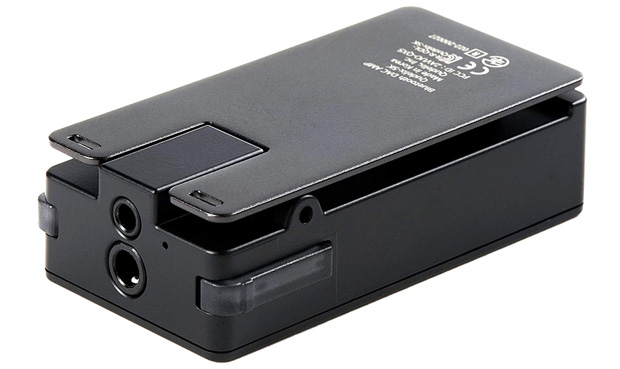

      Qudelix 5K

      Linear Sharp
      About this report
      This is a report for professionals with a suite of tests for line output devices. Alternative version of the report for "dummies" in development.

      A suite of tests for the line-out can be used for headphone or speaker output if in this mode it is possible to use the device as a source for connecting an external amplifier or if such a test suite can give more information about the implementation of the DAC in the device.

      Line-out, differences from the output for headphones and speakers



      //creat smooth=0 multy50 //creat smooth=0 hd

      Test report - general data Qudelix 5K (as Line Out mode)
