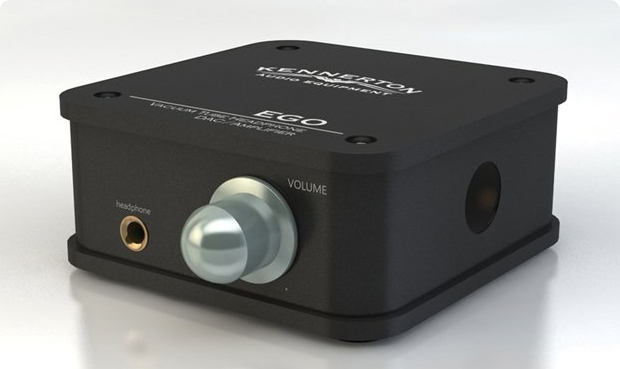

Kennerton Ego
Headphone amplifierHeadphone amplifier
Headphone amplifierHeadphone amplifier
DAC Line OutDAC Line Out



Manufacturers / Kennerton

Test report Kennerton Ego (report for a pro)



About this report
This is a report for professionals with a suite of tests for line output devices. Alternative version of the report for "dummies" in development.

One product can have multiple reports in different modes and with different a suite of tests.

A suite of tests for the line-out can be used for headphone or speaker output if in this mode it is possible to use the device as a source for connecting an external amplifier or if such a test suite can give more information about the implementation of the DAC in the device.



Test report - general data DAC Kennerton Ego

Frequency response


Graphics setting view
Frequency band, Hz:
Range, dB:
Type test:

Spectrum of Total Harmonic Distortion (THD)

Spectrum of Jitter


Spectrum of Multytone Distortion



General results
General results Kennerton Ego
Channel
Center/Summary
Variation in frequency response in band from 100 Hz to 10 kHz, dB
-0,96, 0,15
Max voltage output at 0 dBFS, VRMS
1,35
Max voltage output at 0 dBFS, dBV
2,60
Max voltage output at 0 dBFS, dBu
4,82
Harmonic distortion at 0,0 dBFS @ 1 kHz, dB
-42,1
Total harmonic distortion at 0,0 dBFS @ 1 kHz, %
0,787090
Harmonic distortion at -3,0 dBFS @ 1 kHz, dB
-45,2
Total harmonic distortion at -3,0 dBFS @ 1 kHz, %
0,550160

The table shows the most important technical characteristics Kennerton Ego

*Center channel headphone is received by averaging the frequency response between the left and right channels



Test conditions


The tags (specifications) for this report are:
Type of product :
Mobility :
DAC Test Set :


To send tags for moderation

If some tags are assigned incorrectly or not all are added, select it as appropriate and send it for moderation.




Frequency response DAC Kennerton Ego


Graphics setting view
Frequency band, Hz:
Range, dB:
Channel:
Type test:


Brief information
Translation of the description is not yet ready

Original text in Russian report. You can help with translation via the forum or feedback.


Table
Frequency response Kennerton Ego
Channel
Left
Right
Variation in frequency response in band from 100 Hz to 10 kHz, dB
-1,15, 0,19
-0,78, 0,11

Crosstalk DAC Kennerton Ego


Graphics setting view
Range, dB:
Channel:


Brief information
Translation of the description is not yet ready

Original text in Russian report. You can help with translation via the forum or feedback.


Table
Crosstalk Kennerton Ego
Crosstalk at the frequency 100 Hz, dB
-81,8
Crosstalk at the frequency 1000 Hz, dB
-77,6
Crosstalk at the frequency 10000 Hz, dB
-58,7

Crosstalk Phase DAC Kennerton Ego


Graphics setting view
Channel:


Brief information
Translation of the description is not yet ready

Original text in Russian report. You can help with translation via the forum or feedback.

THD vs output voltage of line out Kennerton Ego


Graphics setting view
Channel:
Type test:


Brief information
Translation of the description is not yet ready

Original text in Russian report. You can help with translation via the forum or feedback.


Table
THD vs output voltage of line out Kennerton_Ego
Max voltage output at 0 dBFS, VRMS
1,35
Max voltage output at 0 dBFS, dBV
2,60
Max voltage output at 0 dBFS, dBu
4,82


Total Harmonic Distortion vs Level (dBFS)DAC Kennerton Ego


Graphics setting view
Channel:
Type test:


Brief information Translation of the description is not yet ready

Original text in Russian report. You can help with translation via the forum or feedback.

Impulse response DAC Kennerton Ego


Graphics setting view
Time, ms:
Channel:


Brief information
During the test, played a pulse with a sampling frequency of 44.1 kHz and the recording is performed with a sampling frequency of 192 kHz / 24-bit

The impulse response can identify the type of digital filter DAC.

it is a translation from the Russian language. The original text of the report in Russian. Suggest alternative translation possible through the forum, feedback or select text and press Ctrl+Enter (anonymously).

Impulse Response Envelope (ETC - Energy Time Curve) DAC Kennerton Ego


Graphics setting view
Time, ms:
Range, dB:
Channel:


Brief information
Translation of the description is not yet ready

Original text in Russian report. You can help with translation via the forum or feedback.

Step response DAC Kennerton Ego


Graphics setting view
Time, ms:
Channel:


Brief information
Translation of the description is not yet ready

Original text in Russian report. You can help with translation via the forum or feedback.

Aliasing DAC Kennerton Ego


Graphics setting view
Channel:
Type test:


Brief information
Translation of the description is not yet ready

Original text in Russian report. You can help with translation via the forum or feedback.

Spectra of high resolution

Noise floor spectrum DAC Kennerton Ego (High resolution graph)


Graphics setting view
Range, dB:
Channel:
Scale:


Brief information
Translation of the description is not yet ready

Original text in Russian report. You can help with translation via the forum or feedback.

Spectrum of Total Harmonic Distortion (THD) DAC Kennerton Ego (High resolution graph)


Graphics setting view
Range, dB:
Channel:
Level, dBFS:
Scale:


Brief information
Translation of the description is not yet ready

Original text in Russian report. You can help with translation via the forum or feedback.


Table
Harmonic distortion
Kennerton_Ego
Harmonic distortion at 0,0 dBFS @ 1 kHz, dB
-42,1
Total harmonic distortion at 0,0 dBFS @ 1 kHz, %
0,787090
Harmonic distortion at -3,0 dBFS @ 1 kHz, dB
-45,2
Total harmonic distortion at -3,0 dBFS @ 1 kHz, %
0,550160




Table
The levels of harmonics when applying signal 1 kHz 0 dBFS
Kennerton_Ego
Harmonic, number
1
2
3
4
5
6
7
8
9
10
The level of harmonics, dB
0,0
-42,1
-64,2
-81,5
-88,7
-93,6
-92,6
-102,6
-100,5
-113,1
Harmonic, number
11
12
13
14
15
16
17
18
19
20
The level of harmonics, dB
-100,1
-106,6
-104,4
-109,2
-104,7
-113,9
-104,8
-111,0
-120,9
-120,5


The levels of harmonics when applying signal 1 kHz -3 dBFS
Kennerton_Ego
Harmonic, number
1
2
3
4
5
6
7
8
9
10
The level of harmonics, dB
-3,0
-48,2
-73,2
-90,8
-89,9
-96,1
-113,2
-98,9
-98,0
-129,0
Harmonic, number
11
12
13
14
15
16
17
18
19
20
The level of harmonics, dB
-103,6
-110,9
-106,5
-119,4
-125,3
-116,8
-114,0
-111,4
-123,1
-125,8
The data in the tables correspond to by average value of left and right channels

Spectrum of Dynamic Range (-60 dBFS) DAC Kennerton Ego (High resolution graph)


Graphics setting view
Range, dB:
Channel:
Scale:


Brief information
Translation of the description is not yet ready

Original text in Russian report. You can help with translation via the forum or feedback.

Sine low ammplitude spectrum -90 dBFS DAC Kennerton Ego (High resolution graph)


Graphics setting view
Range, dB:
Channel:
Scale:


Brief information
Translation of the description is not yet ready

Original text in Russian report. You can help with translation via the forum or feedback.

Spectrum of Intermodulation Distortion (IMD) - SMPTE DAC Kennerton Ego (High resolution graph)


Graphics setting view
Frequency band, Hz:
Range, dB:
Channel:
Level, dBFS:
Scale:


Brief information
Translation of the description is not yet ready

Original text in Russian report. You can help with translation via the forum or feedback.

Spectrum of Intermodulation Distortion (IMD) - CCIF DAC Kennerton Ego (High resolution graph)


Graphics setting view
Range, dB:
Channel:
Level, dBFS:


Brief information
Translation of the description is not yet ready

Original text in Russian report. You can help with translation via the forum or feedback.

Spectrum of Multytone Distortion DAC Kennerton Ego (High resolution graph)


Graphics setting view
Range, dB:
Channel:
Level, dBFS:
Type test:


Brief information
Translation of the description is not yet ready

Original text in Russian report. You can help with translation via the forum or feedback.

Spectrum of Noise Distortion DAC Kennerton Ego (High resolution graph)


Graphics setting view
Range, dB:
Channel:
Level, dBFS:


Brief information
Translation of the description is not yet ready

Original text in Russian report. You can help with translation via the forum or feedback.

Spectrum of Jitter DAC Kennerton Ego (High resolution graph)


Graphics setting view
Frequency band, Hz:
Range, dB:
Channel:
Type test:


Brief information
Translation of the description is not yet ready

Original text in Russian report. You can help with translation via the forum or feedback.


Table
The accuracy of the playback speed Kennerton Ego
Fundamental tone 11025 Hz, Hz
11025,5047
Variance from 11025 Hz, Hz
0,5047

Spectra vs Amplitude

Total Harmonic Distortion vs Level (dBFS) DAC Kennerton Ego


Graphics setting view
Channel:
Level, dBFS:


Brief information
Translation of the description is not yet ready

Original text in Russian report. You can help with translation via the forum or feedback.

Spectrum of IMD SMPTE vs Level (dBFS) DAC Kennerton Ego


Graphics setting view
Frequency band, Hz:
Channel:
Level, dBFS:


Brief information
Translation of the description is not yet ready

Original text in Russian report. You can help with translation via the forum or feedback.

Spectrum of IMD CCIF vs Level (dBFS) DAC Kennerton Ego


Graphics setting view
Channel:
Level, dBFS:


Brief information
Translation of the description is not yet ready

Original text in Russian report. You can help with translation via the forum or feedback.

Spectrum of Multitone Distortion vs Level (dBFS) DAC Kennerton Ego


Graphics setting view
Channel:
Level, dBFS:
Type test:


Brief information
Translation of the description is not yet ready

Original text in Russian report. You can help with translation via the forum or feedback.

Spectrum of Noise Distortion vs Level (dBFS) DAC Kennerton Ego


Graphics setting view
Channel:
Level, dBFS:


Brief information
Translation of the description is not yet ready

Original text in Russian report. You can help with translation via the forum or feedback.
