Measurement's report Hiby R3 Pro Saber Low filter phase compensation - Reference Audio Analyzer

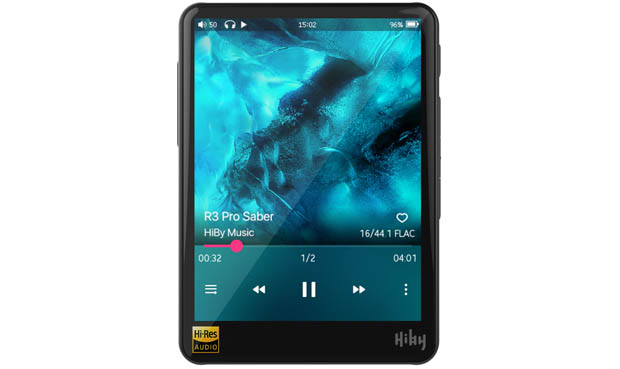

Hiby R3 Pro Saber

Low filter phase compensation
About this report
This is a report for professionals with a suite of tests for line output devices. Alternative version of the report for "dummies" in development.

A suite of tests for the line-out can be used for headphone or speaker output if in this mode it is possible to use the device as a source for connecting an external amplifier or if such a test suite can give more information about the implementation of the DAC in the device.

Line-out, differences from the output for headphones and speakers





Test report - general data Hiby R3 Pro Saber (as Line Out mode)

Your browser does not support Canvas
Your browser does not support Canvas
Your browser does not support Canvas
Your browser does not support Canvas
Your browser does not support Canvas
Your browser does not support Canvas

Max voltage output at 0 dBFS6.0dBV
2.0VRMS





Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.





Frequency response Hiby R3 Pro Saber Low filter phase compensation (as Line Out mode)

Your browser does not support Canvas
Graphics setting view
Channel

Range

Frequency band

Type test:


Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.



Impulse response Hiby R3 Pro Saber Low filter phase compensation (as Line Out mode)

Your browser does not support Canvas
Graphics setting view
Channel

Duration for impulse, envelope and step responses

Your browser does not support Canvas
Graphics setting view
Channel

Duration for impulse, envelope and step responses




Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.





Aliasing Hiby R3 Pro Saber Low filter phase compensation (as Line Out mode)

Your browser does not support Canvas
Graphics setting view
Channel

Range

Type test:


Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.



Harmonic Distortion vs Level Hiby R3 Pro Saber Low filter phase compensation (as Line Out mode)

Your browser does not support Canvas
Graphics setting view
Channel

Comparison by

Harmonic, number


Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.



Crosstalk Hiby R3 Pro Saber Low filter phase compensation (as Line Out mode)

Your browser does not support Canvas
Graphics setting view
Channel

Range

Your browser does not support Canvas
Graphics setting view
Channel


Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.





Spectrum of Total Harmonic Distortion (THD) Hiby R3 Pro Saber Low filter phase compensation (as Line Out mode)

Your browser does not support Canvas
Graphics setting view
Channel

Level @ dBFS

Range

Your browser does not support Canvas
Graphics setting view
Channel

Level @ dBFS

Range


Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.





Spectra Hiby R3 Pro Saber Low filter phase compensation (as Line Out mode)

Spectrum of Dynamic Range (-60 dBFS)

Your browser does not support Canvas
Graphics setting view
Channel

Range

Sine low ammplitude spectrum -90 dBFS

Your browser does not support Canvas
Graphics setting view
Channel

Range


Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.





Spectrum of Multitone Distortion Hiby R3 Pro Saber Low filter phase compensation (as Line Out mode)

Your browser does not support Canvas
Graphics setting view
Channel

Range

Level @ dBFS

Range

Your browser does not support Canvas
Graphics setting view
Channel

Range

Level @ dBFS

Range


Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.





Spectrum of Intermodulation Distortion (IMD) - SMPTE Hiby R3 Pro Saber Low filter phase compensation (as Line Out mode)

Your browser does not support Canvas
Graphics setting view
Channel

Level @ dBFS

Range

Range

Your browser does not support Canvas
Graphics setting view
Channel

Level @ dBFS

Range

Range


Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.





Spectrum of Intermodulation Distortion (IMD) - CCIF Hiby R3 Pro Saber Low filter phase compensation (as Line Out mode)

Your browser does not support Canvas
Graphics setting view
Channel

Level @ dBFS

Range

Your browser does not support Canvas
Graphics setting view
Channel

Level @ dBFS

Range


Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.





Spectrum of Noise Distortion Hiby R3 Pro Saber Low filter phase compensation (as Line Out mode)

Your browser does not support Canvas
Graphics setting view
Channel

Level @ dBFS

Range

Your browser does not support Canvas
Graphics setting view
Channel

Level @ dBFS

Range


Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.





Spectrum of Jitter Hiby R3 Pro Saber Low filter phase compensation (as Line Out mode)

Your browser does not support Canvas
Graphics setting view
Channel

Range

Range

Range


Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.



Checking for correctness of reproduction signals depth more than 16-bit Hiby R3 Pro Saber Low filter phase compensation (as Line Out mode)

Your browser does not support Canvas
Graphics setting view
Channel

Range


Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.





Waveforms / Spectra Hiby R3 Pro Saber Low filter phase compensation (as Line Out mode)

Your browser does not support Canvas
Graphics setting view
Channel

Range

Your browser does not support Canvas
Graphics setting view
Channel

Range

Type test:


Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.





More detailed

Measurements of Hiby R3 Pro Saber Low filter phase compensation were carried out by Roman Kuznetsov on the hardware-software complex RAA.

The Hiby R3 Pro Saber Low filter phase compensation test was conducted as a black box test, without regard to cost and prestige. This is the basic principle for making measurements, measurement reports and developing tests in RAA.




Kuznetsov Roman
Founder of RAA



Known by the nickname romanrex
Аuthor of articles iXBT.com



Information for Authors. You can freely use the graphics in your articles with a link to us.












Original text in Russian page. Translation page is not yet ready

You can help with translation via the: facebook and feedback.
