Measurement's report Aful SnowyNight Single-Ended - Reference Audio Analyzer

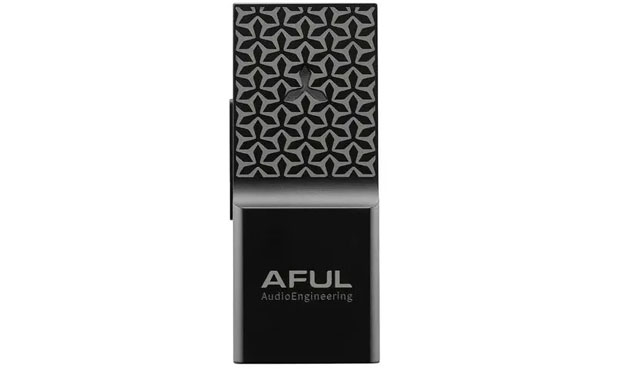

Aful SnowyNight

Single-Ended
About this report
This is a report for professionals with a suite of tests for line output devices. Alternative version of the report for "dummies" in development.

A suite of tests for the line-out can be used for headphone or speaker output if in this mode it is possible to use the device as a source for connecting an external amplifier or if such a test suite can give more information about the implementation of the DAC in the device.

Line-out, differences from the output for headphones and speakers



//creat smooth=0 multy50 //creat smooth=0 hd

Test report - general data Aful SnowyNight (as Line Out mode)

Your browser does not support Canvas
Your browser does not support Canvas
Your browser does not support Canvas
Your browser does not support Canvas
Your browser does not support Canvas
Your browser does not support Canvas

Max voltage output at 0 dBFS5.9dBV
2.0VRMS




General data - Signal/Noise
RMS dBFS (C) dBFS (A) dBFS 22 - 22k UNW
Left Right Left Right Left Right Left Right
Signal-to-noise ratio from the minimum background noise level, dB -121.46 -121.55 -125.66 -125.81 -124.96 -124.91 -122.36 -122.41
Volume control range, dB 99.99 100.00
Noise floor level at the minimum volume level position, dBV -115.55 -115.64 -119.75 -119.90 -119.05 -119.00 -116.45 -116.50
Noise floor level at the minimum volume level position, µVRMS 1.67 1.65 1.03 1.01 1.12 1.12 1.51 1.50
Optimal range of volume control, dB 51.31 51.05 55.56 55.61 54.76 54.81 52.26 52.21
Maximum level at 0 dBFS, dBV 5.91 5.91
Additional information
Signal-to-noise at maximum volume level, dB -121.31 -121.05 -125.56 -125.61 -124.76 -124.81 -122.26 -122.21
Noise floor level at maximum volume level, dBV -115.40 -115.14 -119.65 -119.70 -118.85 -118.90 -116.35 -116.30
The difference in noise floor from the minimum and maximum volume levels, dB 0.15 0.50 0.10 0.20 0.20 0.10 0.10 0.20

Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.





Frequency response Aful SnowyNight Single-Ended (as Line Out mode)

Your browser does not support Canvas
Graphics setting view
Channel

Range

Frequency band

Type test:


Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.



Impulse response Aful SnowyNight Single-Ended (as Line Out mode)

Your browser does not support Canvas
Graphics setting view
Channel

Duration for impulse

Your browser does not support Canvas
Graphics setting view
Channel

Duration for impulse




Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.





Aliasing Aful SnowyNight Single-Ended (as Line Out mode)

Your browser does not support Canvas
Graphics setting view
Channel

Range

Type test:

Frequency band


Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.



Harmonic Distortion vs Level Aful SnowyNight Single-Ended (as Line Out mode)

Your browser does not support Canvas
Graphics setting view
Channel

Comparison by

Harmonic, number

Range


Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.



Crosstalk Aful SnowyNight Single-Ended (as Line Out mode)

Your browser does not support Canvas
Graphics setting view
Channel

Range

Your browser does not support Canvas
Graphics setting view
Channel


Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.





Spectrum of Total Harmonic Distortion (THD) Aful SnowyNight Single-Ended (as Line Out mode)

Your browser does not support Canvas
Graphics setting view
Channel

Level @ dBFS

Range

Your browser does not support Canvas
Graphics setting view
Channel

Level @ dBFS

Range


Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.





Spectra Aful SnowyNight Single-Ended (as Line Out mode)

Spectrum of Dynamic Range (-60 dBFS)

Your browser does not support Canvas
Graphics setting view
Channel

Range

Sine low ammplitude spectrum -90 dBFS

Your browser does not support Canvas
Graphics setting view
Channel

Range


Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.





Spectrum of Multitone Distortion Aful SnowyNight Single-Ended (as Line Out mode)

Your browser does not support Canvas
Graphics setting view
Channel

Range

Level @ dBFS

Range

Your browser does not support Canvas
Graphics setting view
Channel

Range

Level @ dBFS

Range


Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.





Spectrum of Intermodulation Distortion (IMD) - SMPTE Aful SnowyNight Single-Ended (as Line Out mode)

Your browser does not support Canvas
Graphics setting view
Channel

Level @ dBFS

Range

Range

Your browser does not support Canvas
Graphics setting view
Channel

Level @ dBFS

Range

Range


Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.





Spectrum of Intermodulation Distortion (IMD) - CCIF Aful SnowyNight Single-Ended (as Line Out mode)

Your browser does not support Canvas
Graphics setting view
Channel

Level @ dBFS

Range

Your browser does not support Canvas
Graphics setting view
Channel

Level @ dBFS

Range


Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.





Spectrum of Noise Distortion Aful SnowyNight Single-Ended (as Line Out mode)

Your browser does not support Canvas
Graphics setting view
Channel

Level @ dBFS

Range

Your browser does not support Canvas
Graphics setting view
Channel

Level @ dBFS

Range


Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.





Spectrum of Jitter Aful SnowyNight Single-Ended (as Line Out mode)

Your browser does not support Canvas
Graphics setting view
Channel

Range

Range

Range


Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.



Checking for correctness of reproduction signals depth more than 16-bit Aful SnowyNight Single-Ended (as Line Out mode)

Your browser does not support Canvas
Graphics setting view
Channel

Range


Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.





Waveforms / Spectra Aful SnowyNight Single-Ended (as Line Out mode)

Your browser does not support Canvas
Graphics setting view
Channel

Range

Your browser does not support Canvas
Graphics setting view
Channel

Range

Type test:

Frequency band


Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.





More detailed

Measurements of Aful SnowyNight Single-Ended were carried out by Roman Kuznetsov on the hardware-software complex RAA.

The Aful SnowyNight Single-Ended test was conducted as a black box test, without regard to cost and prestige. This is the basic principle for making measurements, measurement reports and developing tests in RAA.




Kuznetsov Roman
Founder of RAA



Known by the nickname romanrex
Аuthor of articles iXBT.com



Information for Authors. You can freely use the graphics in your articles with a link to us.












Original text in Russian page. Translation page is not yet ready
