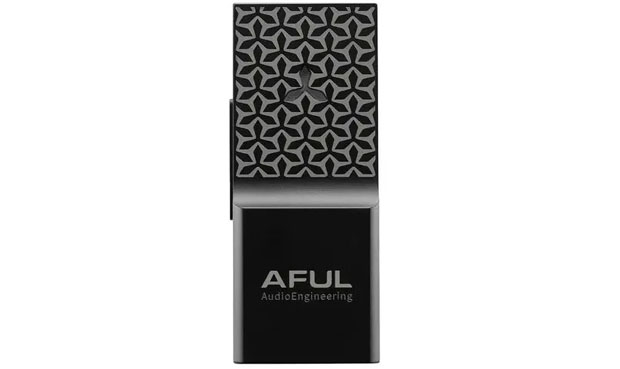

        Aful SnowyNight

        SRC 44.1-192 kHz Balanced Out
        About this report
        This is a report for professionals with a suite of tests for line output devices. Alternative version of the report for "dummies" in development.

        A suite of tests for the line-out can be used for headphone or speaker output if in this mode it is possible to use the device as a source for connecting an external amplifier or if such a test suite can give more information about the implementation of the DAC in the device.

        Line-out, differences from the output for headphones and speakers



        //creat smooth=0 multy50

        Test report - general data Aful SnowyNight (as Line Out mode)

        Your browser does not support Canvas
        Your browser does not support Canvas
        Your browser does not support Canvas
        Your browser does not support Canvas

        Max voltage output at 0 dBFS5.8dBV
        1.9VRMS




        General data - Signal/Noise
        RMS dBFS (C) dBFS (A) dBFS 22 - 22k UNW
        Left Right Left Right Left Right Left Right
        Signal-to-noise ratio from the minimum background noise level, dB -122.43 -123.18 -125.86 -126.97 -125.76 -126.37 -122.86 -123.77
        Volume control range, dB 100.00 100.00
        Noise floor level at the minimum volume level position, dBV -116.68 -117.43 -120.11 -121.22 -120.01 -120.62 -117.11 -118.02
        Noise floor level at the minimum volume level position, µVRMS 1.47 1.34 0.99 0.87 1.00 0.93 1.40 1.26
        Optimal range of volume control, dB 52.19 53.06 55.56 56.77 55.66 56.27 52.76 53.67
        Maximum level at 0 dBFS, dBV 5.75 5.75
        Additional information
        Signal-to-noise at maximum volume level, dB -122.19 -123.06 -125.56 -126.77 -125.66 -126.27 -122.76 -123.67
        Noise floor level at maximum volume level, dBV -116.44 -117.31 -119.81 -121.02 -119.91 -120.52 -117.01 -117.92
        The difference in noise floor from the minimum and maximum volume levels, dB 0.24 0.12 0.30 0.20 0.10 0.10 0.10 0.10

        Brief information

        Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.





        Frequency response Aful SnowyNight SRC 44.1-192 kHz Balanced Out (as Line Out mode)

        Your browser does not support Canvas
        Graphics setting view
        Channel

        Range

        Frequency band


        Brief information

        Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.



        Harmonic Distortion vs Level Aful SnowyNight SRC 44.1-192 kHz Balanced Out (as Line Out mode)

        Your browser does not support Canvas
        Graphics setting view
        Channel

        Comparison by

        Harmonic, number

        Range


        Brief information

        Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.



        Crosstalk Aful SnowyNight SRC 44.1-192 kHz Balanced Out (as Line Out mode)

        Your browser does not support Canvas
        Graphics setting view
        Channel

        Range

        Your browser does not support Canvas
        Graphics setting view
        Channel


        Brief information

        Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.





        Spectrum of Total Harmonic Distortion (THD) Aful SnowyNight SRC 44.1-192 kHz Balanced Out (as Line Out mode)

        Your browser does not support Canvas
        Graphics setting view
        Channel

        Level @ dBFS

        Range


        Brief information

        Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.





        Spectrum of Multitone Distortion Aful SnowyNight SRC 44.1-192 kHz Balanced Out (as Line Out mode)

        Your browser does not support Canvas
        Graphics setting view
        Channel

        Range

        Level @ dBFS

        Range


        Brief information

        Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.





        Spectrum of Intermodulation Distortion (IMD) - SMPTE Aful SnowyNight SRC 44.1-192 kHz Balanced Out (as Line Out mode)

        Your browser does not support Canvas
        Graphics setting view
        Channel

        Level @ dBFS

        Range

        Range


        Brief information

        Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.





        Spectrum of Intermodulation Distortion (IMD) - CCIF Aful SnowyNight SRC 44.1-192 kHz Balanced Out (as Line Out mode)

        Your browser does not support Canvas
        Graphics setting view
        Channel

        Level @ dBFS

        Range


        Brief information

        Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.





        More detailed

        Measurements of Aful SnowyNight SRC 44.1-192 kHz Balanced Out were carried out by Roman Kuznetsov on the hardware-software complex RAA.

        The Aful SnowyNight SRC 44.1-192 kHz Balanced Out test was conducted as a black box test, without regard to cost and prestige. This is the basic principle for making measurements, measurement reports and developing tests in RAA.




        Kuznetsov Roman
        Founder of RAA



        Known by the nickname romanrex
        Аuthor of articles iXBT.com



        Information for Authors. You can freely use the graphics in your articles with a link to us.
