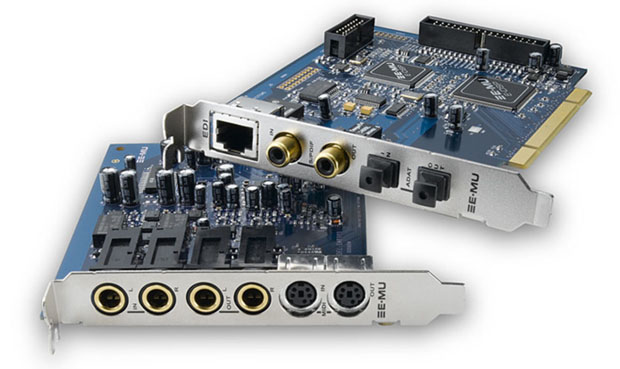

      E-MU 1212m V2

      +4 dBu Unbalanced Out
      About this report
      This is a report for professionals with a suite of tests for line output devices. Alternative version of the report for "dummies" in development.

      A suite of tests for the line-out can be used for headphone or speaker output if in this mode it is possible to use the device as a source for connecting an external amplifier or if such a test suite can give more information about the implementation of the DAC in the device.

      Line-out, differences from the output for headphones and speakers





      Test report - general data E-MU 1212m V2 (as Line Out mode)

      Your browser does not support Canvas
      Your browser does not support Canvas
      Your browser does not support Canvas
      Your browser does not support Canvas
      Your browser does not support Canvas
      Your browser does not support Canvas

      Max voltage output at 0 dBFS11.2dBV
      3.6VRMS





      Brief information

      Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.





      Frequency response E-MU 1212m V2 +4 dBu Unbalanced Out (as Line Out mode)

      Your browser does not support Canvas
      Graphics setting view
      Channel

      Range

      Frequency band

      Type test:


      Brief information

      Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.



      Impulse response E-MU 1212m V2 +4 dBu Unbalanced Out (as Line Out mode)

      Your browser does not support Canvas
      Graphics setting view
      Channel

      Duration for impulse, envelope and step responses

      Your browser does not support Canvas
      Graphics setting view
      Channel

      Duration for impulse, envelope and step responses




      Brief information

      Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.





      Aliasing E-MU 1212m V2 +4 dBu Unbalanced Out (as Line Out mode)

      Your browser does not support Canvas
      Graphics setting view
      Channel

      Range

      Type test:


      Brief information

      Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.



      Harmonic Distortion vs Level E-MU 1212m V2 +4 dBu Unbalanced Out (as Line Out mode)

      Your browser does not support Canvas
      Graphics setting view
      Channel

      Comparison by

      Harmonic, number


      Brief information

      Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.



      Crosstalk E-MU 1212m V2 +4 dBu Unbalanced Out (as Line Out mode)

      Your browser does not support Canvas
      Graphics setting view
      Channel

      Range

      Your browser does not support Canvas
      Graphics setting view
      Channel


      Brief information

      Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.





      Spectrum of Total Harmonic Distortion (THD) E-MU 1212m V2 +4 dBu Unbalanced Out (as Line Out mode)

      Your browser does not support Canvas
      Graphics setting view
      Channel

      Level @ dBFS

      Range

      Your browser does not support Canvas
      Graphics setting view
      Channel

      Level @ dBFS

      Range


      Brief information

      Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.





      Spectra E-MU 1212m V2 +4 dBu Unbalanced Out (as Line Out mode)

      Spectrum of Dynamic Range (-60 dBFS)

      Your browser does not support Canvas
      Graphics setting view
      Channel

      Range

      Sine low ammplitude spectrum -90 dBFS

      Your browser does not support Canvas
      Graphics setting view
      Channel

      Range


      Brief information

      Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.





      Spectrum of Multitone Distortion E-MU 1212m V2 +4 dBu Unbalanced Out (as Line Out mode)

      Your browser does not support Canvas
      Graphics setting view
      Channel

      Range

      Level @ dBFS

      Range

      Your browser does not support Canvas
      Graphics setting view
      Channel

      Range

      Level @ dBFS

      Range


      Brief information

      Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.





      Spectrum of Intermodulation Distortion (IMD) - SMPTE E-MU 1212m V2 +4 dBu Unbalanced Out (as Line Out mode)

      Your browser does not support Canvas
      Graphics setting view
      Channel

      Level @ dBFS

      Range

      Range

      Your browser does not support Canvas
      Graphics setting view
      Channel

      Level @ dBFS

      Range

      Range


      Brief information

      Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.





      Spectrum of Intermodulation Distortion (IMD) - CCIF E-MU 1212m V2 +4 dBu Unbalanced Out (as Line Out mode)

      Your browser does not support Canvas
      Graphics setting view
      Channel

      Level @ dBFS

      Range

      Your browser does not support Canvas
      Graphics setting view
      Channel

      Level @ dBFS

      Range


      Brief information

      Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.





      Spectrum of Noise Distortion E-MU 1212m V2 +4 dBu Unbalanced Out (as Line Out mode)

      Your browser does not support Canvas
      Graphics setting view
      Channel

      Level @ dBFS

      Range

      Your browser does not support Canvas
      Graphics setting view
      Channel

      Level @ dBFS

      Range


      Brief information

      Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.





      Spectrum of Jitter E-MU 1212m V2 +4 dBu Unbalanced Out (as Line Out mode)

      Your browser does not support Canvas
      Graphics setting view
      Channel

      Range

      Range

      Range


      Brief information

      Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.



      Checking for correctness of reproduction signals depth more than 16-bit E-MU 1212m V2 +4 dBu Unbalanced Out (as Line Out mode)

      Your browser does not support Canvas
      Graphics setting view
      Channel

      Range


      Brief information

      Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.





      Waveforms / Spectra E-MU 1212m V2 +4 dBu Unbalanced Out (as Line Out mode)

      Your browser does not support Canvas
      Graphics setting view
      Channel

      Range

      Your browser does not support Canvas
      Graphics setting view
      Channel

      Range

      Type test:


      Brief information

      Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.





      More detailed

      Measurements of E-MU 1212m V2 +4 dBu Unbalanced Out were carried out by Roman Kuznetsov on the hardware-software complex RAA.

      The E-MU 1212m V2 +4 dBu Unbalanced Out test was conducted as a black box test, without regard to cost and prestige. This is the basic principle for making measurements, measurement reports and developing tests in RAA.




      Kuznetsov Roman
      Founder of RAA



      Known by the nickname romanrex
      Аuthor of articles iXBT.com



      Information for Authors. You can freely use the graphics in your articles with a link to us.




      E-MU 1212m V2 is available in reports and services. You are in a professional report.

      Information for entry level users


      Information for professionals
          reports for a pro (DAC Line Out)
          Comparison of on-line graphs




          Quick jump to the schedule in this report: +4 dBu Unbalanced Out
