This is a report for professionals with a suite of test of headphone amplifier.
You can see a simple report for "dummies" with explanations of the main characteristics for Musatoff HD-15 Hi Scaler

A suite of tests for a headphone amplifier can be applied to just a universal output without a formal presence of an amplifier, if in this mode you can connect headphones to this output. Based on the results of the tests, you can understand the real picture, is the output powerful enough or not, with the initial data on the circuitry as a "black box".

Line-out, differences from the output for headphones and speakers

Advantages and disadvantages of balanced amplifiers

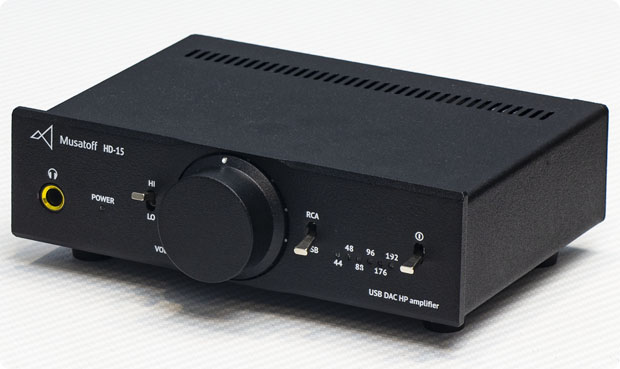

Test report - general data Musatoff HD-15 (as headphone amplifier)

Frequency response, Impedance and Frequency response with standard headphones

Voltage levels from the load at the output of the amplifier

Average value of impedance band in 40 Hz - 15 kHz	1.1	ohm
Voltage: Linear Mode / Maximum or before clipping level	20.7/20.7	dBV
	10.8/10.8	V_RMS
Current: Linear Mode / Maximum or before clipping level	38.7/53.9	dB(mA)
	86.2/494.6	mA

Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.

Frequency response Musatoff HD-15 Hi Scaler (as headphone amplifier)

Graphics setting view

Channel

Range

Channel:	Left	Right
Variation in frequency response in band from 40 Hz - 15 kHz	-0.1, +0.0	-0.1, +0.0	dB

Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.

On the frequency response comparison page, there is an export option and additional tools for adjusting the frequency response

Impedance Musatoff HD-15 Hi Scaler (as headphone amplifier)

Graphics setting view

Channel

Channel:	Left	Right
Impedance average in band from 40 Hz - 15 kHz	1.1	1.1	ohm
The minimum value in band from 40 Hz - 15 kHz	1.1	1.1	ohm
The maximum value in band from 40 Hz - 15 kHz	1.1	1.1	ohm

Comparison of basic characteristics AMPs

Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.

Crosstalk Musatoff HD-15 Hi Scaler (as headphone amplifier)

Graphics setting view

Channel

Range

Load

Channel:	Left	Right
Crosstalk @ 1 kHz @ 15.8 ohm	-50.6	-50.6	dB
Crosstalk @ 1 kHz @ 24.5 ohm	-54.1	-54.2	dB
Crosstalk @ 1 kHz @ 30.5 ohm	-56.3	-56.3	dB
Crosstalk @ 1 kHz @ 62.4 ohm	-62.9	-63.1	dB
Crosstalk @ 1 kHz @ 100.0 ohm	-67.6	-67.9	dB
Crosstalk @ 1 kHz @ 198.9 ohm	-75.8	-76.6	dB
Crosstalk @ 1 kHz @ 300.0 ohm	-82.0	-83.2	dB
Crosstalk @ 1 kHz @ 763.0 ohm	-88.2	-85.7	dB
Crosstalk @ 1 kHz @ Not loaded	-79.9	-79.1	dB

Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.

Crosstalk Phase Musatoff HD-15 Hi Scaler (as headphone amplifier)

Graphics setting view

Channel

Load

Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.

Frequency response Musatoff HD-15 Hi Scaler with resistive load

Graphics setting view

Channel

Range

Frequency response of amplifier with resistive load @ 40 Hz - 15 kHz

Channel:	Left	Right
TEST 16 ? + Musatoff HD-15 Hi Scaler	0.0	0.0	dB
TEST 32 ? + Musatoff HD-15 Hi Scaler	0.0	0.0	dB
TEST 64 ? + Musatoff HD-15 Hi Scaler	0.0	0.0	dB
TEST 126 ? + Musatoff HD-15 Hi Scaler	0.0	0.0	dB
TEST 256 ? + Musatoff HD-15 Hi Scaler	0.0	0.0	dB
TEST 512 ? + Musatoff HD-15 Hi Scaler	0.0	0.0	dB

Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.

On the frequency response comparison page, there is an export option and additional tools for adjusting the frequency response

Frequency response Musatoff HD-15 Hi Scaler loaded dynamic headphone type

Graphics setting view

Channel

Range

Frequency response of amplifier loaded dynamic headphone type @ 40 Hz - 15 kHz

Channel:	Left	Right
TEST 10000 ? + Musatoff HD-15 Hi Scaler	0.0	0.0	dB
Grado GH4 Limited Edition + Musatoff HD-15 Hi Scaler	0.2	0.2	dB

Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.

On the frequency response comparison page, there is an export option and additional tools for adjusting the frequency response

Frequency response Musatoff HD-15 Hi Scaler loaded type balance armature headphone type

Graphics setting view

Channel

Range

Frequency response of amplifier loaded type balance armature headphone type @ 40 Hz - 15 kHz

Channel:	Left	Right
TEST 10000 ? + Musatoff HD-15 Hi Scaler	0.0	0.0	dB
Campfire Audio Andromeda + Musatoff HD-15 Hi Scaler	1.9	1.9	dB
Fearless Audio S8F Freedom + Musatoff HD-15 Hi Scaler	1.6	1.4	dB

Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.

On the frequency response comparison page, there is an export option and additional tools for adjusting the frequency response

THD vs load vs output voltage Musatoff HD-15 Hi Scaler

Graphics setting view

Channel

Load

Harmonic, number

Range

Graphics setting view

Channel

Load

Harmonic, number

Range

Graphics setting view

Channel

Load

Range

Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.

Maximum voltage output level vs load Musatoff HD-15 Hi Scaler

Graphics setting view

Type of chart

RAW coordinates

Power characteristics of the	Voltage		Current
	dBV	V_RMS	dB(mA)	mA
Linear Mode	20.7	10.8	38.7	86.2
Optimal Mode	20.7	10.8	48.4	264.0
Hard Mode	20.7	10.8	52.9	440.9
Maximum mode	20.7	10.8	53.9	494.6

Volume Control Type	Analog
Optimal range of volume control	56.0	dB

Comparison Musatoff HD-15 Hi Scaler and another amplifiers by loudness (Volume Level)

Main characteristics of the Musatoff HD-15 Hi Scaler

Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.

Maximum voltage output level vs load Musatoff HD-15 Hi Scaler

Graphics setting view

Type of chart

RAW coordinates

Maximum Amplifier Voltage Level

Load	Linear Mode		Optimal Mode		Hard Mode		Max, before clipping
	dBV	V_RMS	dBV	V_RMS	dBV	V_RMS	dBV	V_RMS

Maximum level of amplifier current

Load	Linear Mode		Optimal Mode		Hard Mode		Max, before clipping
	dB(mA)	mA	dB(mA)	mA	dB(mA)	mA	dB(mA)	mA

Power

Load	Linear Mode		Optimal Mode		Hard Mode		Max, before clipping
	dBm	mW	dBm	mW	dBm	mW	dBm	mW

Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.

Spectrum of Total Harmonic Distortion vs Level Musatoff HD-15 Hi Scaler (as headphone amplifier)

Graphics setting view

Channel

Level

Range

Graphics setting view

Channel

Level

Range

Graphics setting view

Channel

Shift

dBm

Range

Graphics setting view

Channel

Shift

dBV

Range

Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.

Spectrum of Multitone Distortion vs Level vs Load Musatoff HD-15 Hi Scaler (as headphone amplifier)

Graphics setting view

Channel

Level

Range

Graphics setting view

Channel

Level

Range

Graphics setting view

Channel

Shift

dBm

Range

Graphics setting view

Channel

Shift

dBV

Range

Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.

Spectrum of IMD SMPTE vs Level Musatoff HD-15 Hi Scaler (as headphone amplifier)

Graphics setting view

Channel

Level

Range

Range

Graphics setting view

Channel

Level

Range

Range

Graphics setting view

Channel

Shift

Range

dBm

Range

Graphics setting view

Channel

Shift

Range

dBV

Range

Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.

Spectrum of IMD CCIF vs Level Musatoff HD-15 Hi Scaler (as headphone amplifier)

Graphics setting view

Channel

Level

Range

Graphics setting view

Channel

Level

Range

Graphics setting view

Channel

Shift

dBm

Range

Graphics setting view

Channel

Shift

dBV

Range

Brief information

Clicking on the graph will take you to the comparison page of different models with advanced graph display settings.

More detailed

Measurements of Musatoff HD-15 Hi Scaler were carried out by Roman Kuznetsov on the hardware-software complex RAA.

The Musatoff HD-15 Hi Scaler test was conducted as a black box test, without regard to cost and prestige. This is the basic principle for making measurements, measurement reports and developing tests in RAA.

I believe that it is important to do not make an absolute assessment of the device, but an aggregate assessment when working together with a headphones and taking into account external factors. This allows you to effectively reveal the potential of the entire set of devices or to make a more optimal choice of components.

Kuznetsov Roman
Founder of RAA

Known by the nickname romanrex
Аuthor of articles iXBT.com

Information for Authors. You can freely use the graphics in your articles with a link to us.

Musatoff HD-15 is available in reports and services. You are in a professional report.
