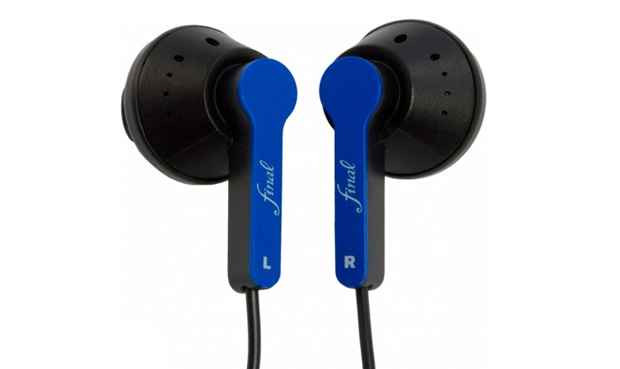

Final Audio Design Piano Forte II (Test report)

Test report - general data headphone Final Audio Design Piano Forte II

Frequency response, Impedance, Frequency response with standard AMPs


Graphics setting view
Frequency band, Hz:
Range, dB:

General results Final Audio Design Piano Forte II
Channel
Summary (Right + Left)
Sensitivity average in band from 100 Hz to 10 kHz, dB/V
127,9
Impedance average in band from 40 Hz to 15 kHz, ohm
17,2
For 94,0 dB SPL need, VRMS
0,020
For 94,0 dB SPL need, mW
0,024

The table shows a most important technical characteristics of Final Audio Design Piano Forte II

*Center channel headphone is received by averaging between left and right channels

The report contains the complete data
Version report: V2

Reports and testing methodology is gradually updated. We try to generate the report in such a way that it would have been a single kind of report for all devices, convenient for direct comparison.

We constantly introduce new tests and improving the options for displaying graphs and parameters. It introduces different changes in reports. Because reports are generated automatically, the updates do not take much time.

In the development and implementation of new tests, new reports are more complete. To update some charts and tables may require additional time to process the raw data separately for each device.

Some devices require re-testing.

The history of the development of the report:
CloseMore detailed
Version report: V1 (Stands: HDM1, SF, SIEC)
  • Frequency response
  • Impedance
  • Sensitivity
  • Electric phase
  • Frequency response of amplifier with constant output resistance
  • Variation in frequency response with amplifiers with constant output resistance
  • Frequency response with an amplifier with zero output resistance and raising of output resistance in low frequencies
  • Variation in frequency response an amplifier with zero output resistance with raising-up of output resistance in low frequencies
  • Perception of headphone frequency response curves of equal loudness ISO 226-2009
Version report: V2 (Stands: HDM-X, SIEC)

Stands HDM1 and SF replaced by HDM-X stand.
Measurements in the extended frequency range 10 - 45000 Hz
  • Impulse response
  • Step response
  • Impulse Response Envelope (ETC - Energy Time Curve)
  • QSD / Watterfall
  • Delta QSD / Delta Watterfall

Test conditions

  • Type of headphones: In-Ear or Tablet
  • Measurements were performed on the stand:
    • with on the simulator of human head with ears HDM-X with natural acoustic damping
  • Calculate headphone's SPL Final Audio Design Piano Forte II taking into amplifier by online calculator based on table's data
  • Headphone: Low-impedance
  • The type of acoustic design Semi-open




Report content

Detailed measurements report of technical characteristics

Sensitivity headphone Final Audio Design Piano Forte II


Graphics setting view
Frequency band, Hz:
Channel:

  • Type of headphones: In-Ear or Tablet
  • Measurements were performed on the stand:
    • with on the simulator of human head with ears HDM-X with natural acoustic damping
Calculate headphone's SPL Final Audio Design Piano Forte II with the amplifier it is possible in an online calculator based on the data in the table

Sensitivity Final Audio Design Piano Forte II
Channel
Left
Right
Sensitivity average in band from 100 Hz to 10 kHz, dB/V
130,0
124,1
Sensitivity at 500 Hz at 1 V, dB
129,3
126,9
Sensitivity at 500 Hz at 1 mW, dB
111,6
109,4
Sensitivity at 1000 Hz at 1 V, dB
130,1
124,3
Sensitivity at 1000 Hz at 1 mW, dB
112,4
106,6

The sensitivity was calculated by data from the measuring stand HDM-X


Frequency response headphone Final Audio Design Piano Forte II


Graphics setting view
Frequency band, Hz:
Range, dB:
Channel:

  • Type of headphones: In-Ear or Tablet
  • Measurements were performed on the stand:
    • with on the simulator of human head with ears HDM-X with natural acoustic damping
Frequency response Final Audio Design Piano Forte II
Channel
Left
Right
Variation in frequency response in band from 100 Hz to 10 kHz, dB
-25,57, 7,88
-20,20, 10,40

Impedance headphone Final Audio Design Piano Forte II


Graphics setting view
Frequency band, Hz:
Channel:

Impedance Final Audio Design Piano Forte II
Channel
Left
Right
Impedance average in band from 40 Hz to 15 kHz, ohm
17,3
17,2
Resistance at 500 Hz, ohm
17,3
17,6
Resistance at 1000 Hz, ohm
16,9
16,9
The minimum value in band from 40 Hz to 15 kHz at frequency, Hz
40,0
47,6
The minimum value in band from 40 Hz to 15 kHz, ohm
16,8
16,9
The maximum value in band from 40 Hz to 15 kHz at frequency, Hz
266,3
375,8
The maximum value in band from 40 Hz to 15 kHz, ohm
20,0
18,9

Electric phase headphone Final Audio Design Piano Forte II


Graphics setting view
Frequency band, Hz:
Range, degree:
Channel:

Electric phase Final Audio Design Piano Forte II
Channel
Left
Right
Average variation in phase response in band from 20 Hz to 20 kHz, degree
1,8
1,8
The minimum value in band from 20 Hz to 20 kHz at frequency, Hz
310,9
470,1
The minimum value in band from 20 Hz to 20 kHz, degree
-4,6
-3,0
The maximum value in band from 20 Hz to 20 kHz at frequency, Hz
19741,4
19741,4
The maximum value in band from 20 Hz to 20 kHz, degree
10,7
10,8

Frequency response of amplifier with constant output resistance from headphone Final Audio Design Piano Forte II


Graphics setting view
Frequency band, Hz:
Range, dB:
Channel:

Frequency response of headphone Final Audio Design Piano Forte II with amplifier with a constant impedance
Channel
Left
Right
Variation in FR from AMP 0 ohm in band 100 Hz to 10 kHz, dB
-25,57, +7,88
-20,20, +10,40
Variation in FR from AMP 10 ohm in band 100 Hz to 10 kHz, dB
-25,58, +7,79
-20,18, +10,37
Variation in FR from AMP 20 ohm in band 100 Hz to 10 kHz, dB
-25,58, +7,75
-20,17, +10,36
Variation in FR from AMP 50 ohm in band 100 Hz to 10 kHz, dB
-25,59, +7,70
-20,16, +10,35
Variation in FR from AMP 100 ohm in band 100 Hz to 10 kHz, dB
-25,59, +7,68
-20,15, +10,34
Variation in FR from AMP 300 ohm in band 100 Hz to 10 kHz, dB
-25,60, +7,65
-20,15, +10,34

Variation in frequency response with amplifiers with constant output resistance from headphone Final Audio Design Piano Forte II


Graphics setting view
Frequency band, Hz:
Range, dB:
Channel:

Variation in frequency response with amplifiers with constant output resistance from Final Audio Design Piano Forte II
Channel
Summary (Right + Left)
With amplifier impedance at 10 ohm in band 20 Hz to 20 kHz, dB
0,3
With amplifier impedance at 20 ohm in band 20 Hz to 20 kHz, dB
0,5
With amplifier impedance at 50 ohm in band 20 Hz to 20 kHz, dB
0,7
With amplifier impedance at 100 ohm in band 20 Hz to 20 kHz, dB
0,8
With amplifier impedance at 300 ohm in band 20 Hz to 20 kHz, dB
0,8

*Center channel is received by data averaging between the left and right channels


Frequency response with an amplifier with zero output resistance and raising of output resistance in low frequencies from headphone Final Audio Design Piano Forte II


Graphics setting view
Frequency band, Hz:
Range, dB:
Channel:

Frequency response with an amplifier with zero output resistance and raising of output resistance in low frequencies from Final Audio Design Piano Forte II
Channel
Left
Right
Variation in frequency response in band from 100 Hz to 10 kHz, dB
-25,41, 8,02
-20,75, 10,56

Variation in frequency response an amplifier with zero output resistance with raising-up of output resistance in low frequencies from headphone Final Audio Design Piano Forte II


Graphics setting view
Frequency band, Hz:
Range, dB:
Channel:

Variance of frequency response Final Audio Design Piano Forte II depending on the total output resistance of the amplifier with zero resistance and a rise of resistance at low frequencies
Variance frequency response at the frequency 20 Hz, dB
-8,1
Variance frequency response at the frequency 40 Hz, dB
-3,7
Variance frequency response at the frequency 80 Hz, dB
-1,5

Perception of headphone frequency response curves of equal loudness ISO 226-2009 from headphone Final Audio Design Piano Forte II


Graphics setting view
Channel:

Perception of headphone frequency response curves of equal loudness ISO 226-2009 from Final Audio Design Piano Forte II
Channel
Summary (Right + Left)
From level 48 dB at 72 dB SPL in band 100 Hz to 10 kHz, dB
-23,2, +7,0
From level 36 dB at 72 dB SPL in band 100 Hz to 10 kHz, dB
-23,3, +5,4
From level 24 dB at 72 dB SPL in band 100 Hz to 10 kHz, dB
-23,5, +5,0
From level 12 dB at 72 dB SPL in band 100 Hz to 10 kHz, dB
-23,6, +6,0
From level 0 dB at 72 dB SPL in band 100 Hz to 10 kHz, dB
-23,7, +7,1
From level -12 dB at 72 dB SPL in band 100 Hz to 10 kHz, dB
-23,8, +8,2
From level -24 dB at 72 dB SPL in band 100 Hz to 10 kHz, dB
-23,9, +9,3
From level -36 dB at 72 dB SPL in band 100 Hz to 10 kHz, dB
-24,0, +10,3

*Center channel is received by data averaging between the left and right channels


Impulse response headphone Final Audio Design Piano Forte II


Graphics setting view
Time, ms:
Channel:





Impulse Response Envelope (ETC - Energy Time Curve) headphone Final Audio Design Piano Forte II


Graphics setting view
Time, ms:
Range, dB:
Channel:





Step response headphone Final Audio Design Piano Forte II


Graphics setting view
Time, ms:
Channel:





QSD / Watterfall headphone Final Audio Design Piano Forte II


Graphics setting view
Frequency band, Hz:
Channel:


Delta QSD / Delta Watterfall headphone Final Audio Design Piano Forte II


Graphics setting view
Frequency band, Hz:
Channel:





More detailed

Measurements of Final Audio Design Piano Forte II were carried out by Roman Kuznetsov on the hardware-software complex RAA.

The Final Audio Design Piano Forte II test was conducted as a black box test, without regard to cost and prestige. This is the basic principle for making measurements, measurement reports and developing tests in RAA.

I believe that it is important to do not make an absolute assessment of the device, but an aggregate assessment when working together with a source amplifier and taking into account external factors. This allows you to effectively reveal the potential of the entire set of devices or to make a more optimal choice of components.




Kuznetsov Roman
Founder of RAA



Known by the nickname romanrex
Аuthor of articles iXBT.com
