Test report Astell & Kern iriver AK120

Test report - general data headphone amplifier Astell & Kern iriver AK120

Frequency response, Impedance and Frequency response with standard headphones


Graphics setting view
Range, dB:

General results

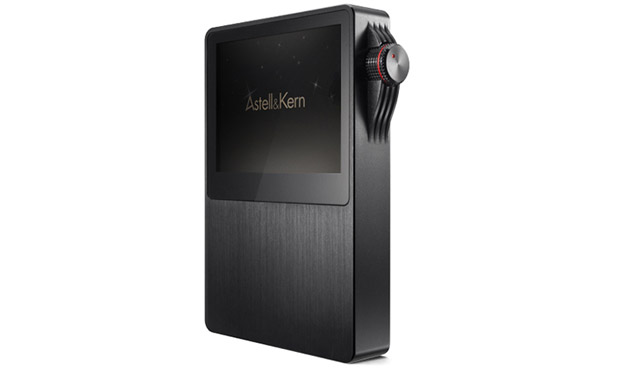

Astell & Kern iriver AK120
Channel
Left
Average variation in FR in the band 40 Hz to 15 kHz, dB
-0,15, 0,18
Average value of impedance band in 40 Hz to 15 kHz, ohm
4,6
Max voltage output
VRMS
dBV
Maximum current output at loaded
ohm
mA
Max power output
ohm
mW
dBm

The table shows a most important technical characteristics of Astell & Kern iriver AK120

Calculate sound pressure level in headphones with online calculator with data entered from the table for Astell & Kern iriver AK120

Test conditions

  • For record of test signals RAA was used ADC: E-MU 1616m
  • During tests RAA software-hardware measuring complex was used galvanic isolated power transformer and was excluded the effect of ground loop in the spectra

Report earlier version
Version report: V1~V2

Reports and testing methodology is gradually updated. We try to generate the report in such a way that it would have been a single kind of report for all devices, convenient for direct comparison.

We constantly introduce new tests and improving the options for displaying graphs and parameters. It introduces different changes in reports. Because reports are generated automatically, the updates do not take much time.

In the development and implementation of new tests, new reports are more complete. To update some charts and tables may require additional time to process the raw data separately for each device.

Some devices require re-testing.

This model was tested for a long time and the report does not have the following graphs:

This model was tested for a long time and the report does not have the following graphs:

  • Maximum voltage output level vs load
  • Maximum current level output vs load
  • Maximum power level output level vs load
  • THD vs load vs output voltage
  • Harmonic distortion spectrum vs amplitude vs loaded
  • Spectrum of IMD SMPTE vs Level
  • Spectrum of IMD CCIF vs Level
  • Spectrum of Multitone Distortion vs Level vs Load
  • Crosstalk
  • Crosstalk Phase

The history of the development of the report:
CloseMore detailed
Version report: V1
  • Frequency response
  • Impedance
  • Frequency response with loaded resistors
  • Variation in frequency response dependence of load dynamic type headphones
  • Frequency response vs load balance armature headphone type (one driver)
  • Variation in frequency response vs load balance armature headphone type (one driver)
Version report: V2
  • Maximum voltage output level vs load
  • Maximum current level output vs load
  • Maximum power level output level vs load
Version report: V3
  • THD vs load vs output voltage
  • Harmonic distortion spectrum vs amplitude vs loaded
Version report: V4
  • Crosstalk
  • Crosstalk Phase
  • Spectrum of IMD SMPTE vs Level
  • Spectrum of IMD CCIF vs Level
  • Spectrum of Multitone Distortion vs Level vs Load


Detailed measurements report of technical characteristics

Frequency response headphone amplifier Astell & Kern iriver AK120


Graphics setting view
Range, dB:

Frequency response Astell & Kern iriver AK120
Channel
Left
Variation in frequency response in band from 100 Hz to 10 kHz, dB
-0,16, 0,17

Impedance headphone amplifier Astell & Kern iriver AK120


Impedance Astell & Kern iriver AK120
Channel
Left
Impedance average in band from 40 Hz to 15 kHz, ohm
4,6
Resistance at 500 Hz, ohm
4,7
Resistance at 1000 Hz, ohm
4,8
The minimum value in band from 40 Hz to 15 kHz at frequency, Hz
205,8
The minimum value in band from 40 Hz to 15 kHz, ohm
4,2
The maximum value in band from 40 Hz to 15 kHz at frequency, Hz
591,1
The maximum value in band from 40 Hz to 15 kHz, ohm
4,9

Frequency response with loaded resistors from Astell & Kern iriver AK120


Graphics setting view
Range, dB:

Frequency response of amplifier headphone amplifier Astell & Kern iriver AK120
with resistive load
Channel
Left
Variation in frequency response in band 40 Hz to 15 kHz loaded 16 ohm, dB
0,28
Variation in frequency response in band 40 Hz to 15 kHz loaded 32 ohm, dB
0,16
Variation in frequency response in band 40 Hz to 15 kHz loaded 50 ohm, dB
0,11
Variation in frequency response in band 40 Hz to 15 kHz loaded 100 ohm, dB
0,06
Variation in frequency response in band 40 Hz to 15 kHz loaded 250 ohm, dB
0,02
Variation in frequency response in band 40 Hz to 15 kHz loaded 600 ohm, dB
0,01



Frequency response headphone amplifier Astell & Kern iriver AK120 loaded dynamic headphone type


Graphics setting view
Range, dB:

Frequency response of the headphone amplifier Astell & Kern iriver AK120
loaded dynamic headphone type
Channel
Left
Variation in frequency response in band 40 Hz to 15 kHz load the dynamic type, dB
0,56



Deviation of frequency response headphone amplifier Astell & Kern iriver AK120 loaded dynamic headphone type


Graphics setting view
Range, dB:

Frequency response of amplifier Astell & Kern iriver AK120
loaded dynamic headphone type
Channel
Left
Variation in frequency response in band 40 Hz to 15 kHz load the dynamic type, dB
0,47



Frequency response headphone amplifier Astell & Kern iriver AK120 loaded type balance armature headphone type


Graphics setting view
Range, dB:

Frequency response of amplifier Astell & Kern iriver AK120
loaded type balanced armature
Channel
Left
Variation in frequency response in band 40 Hz to 15 kHz loaded type balanced armature, dB
1,95



Deviation of frequency response headphone amplifier Astell & Kern iriver AK120 loaded type balance armature headphone type


Graphics setting view
Range, dB:

Frequency response of amplifier Astell & Kern iriver AK120
loaded type balanced armature
Channel
Left
Variation in frequency response in band 40 Hz to 15 kHz loaded type balanced armature, dB
2,02






More detailed

Measurements of Astell&Kern AK120 were carried out by Roman Kuznetsov on the hardware-software complex RAA.

The Astell&Kern AK120 test was conducted as a black box test, without regard to cost and prestige. This is the basic principle for making measurements, measurement reports and developing tests in RAA.

I believe that it is important to do not make an absolute assessment of the device, but an aggregate assessment when working together with a headphones and taking into account external factors. This allows you to effectively reveal the potential of the entire set of devices or to make a more optimal choice of components.




Kuznetsov Roman
Founder of RAA



Known by the nickname romanrex
Аuthor of articles iXBT.com



Information for Authors. You can freely use the graphics in your articles with a link to us.
