Monster Elements Wireless Over-Ear Bluetooth (Test report)

Test report - general data headphone Monster Elements Wireless Over-Ear Bluetooth

Frequency response


Graphics setting view
Range, dB:

General results Monster Elements Wireless Over-Ear Bluetooth
Channel
Summary (Right + Left)
Variation in frequency response in band from 100 Hz to 0,01 kHz, dB
-8,32, 7,25

The table shows a most important technical characteristics of Monster Elements Wireless Over-Ear Bluetooth

*Center channel headphone is received by averaging between left and right channels

*impedance value in the table for channel

Test conditions

  • Type of headphones: Over-ear
  • Measurements were performed on the stand:

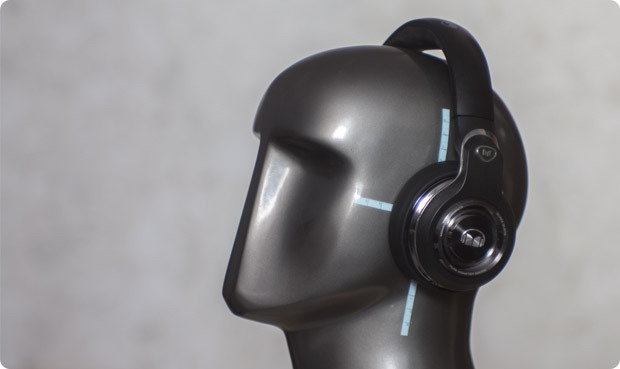

    • with on the simulator of human head with ears HDM-X with natural acoustic damping
  • Calculate headphone's SPL Monster Elements Wireless Over-Ear Bluetooth taking into amplifier by online calculator based on table's data
  • Headphone's impedance has not been tested
    • The model use internal headphone amplifier
    • Can be used only with special AMP
    • By other reason
    • The type of acoustic design Closed



Report content

Detailed measurements report of technical characteristics

Frequency response headphone Monster Elements Wireless Over-Ear Bluetooth


Graphics setting view
Range, dB:
Channel:

  • Type of headphones: Over-ear
  • Measurements were performed on the stand:
    • with on the simulator of human head with ears HDM-X with natural acoustic damping
Frequency response Monster Elements Wireless Over-Ear Bluetooth
Channel
Left
Right
Variation in frequency response in band from 100 Hz to 10 kHz, dB
-9,26, 7,49
-7,36, 7,15

Perception of headphone frequency response curves of equal loudness ISO 226-2009 from headphone Monster Elements Wireless Over-Ear Bluetooth


Graphics setting view
Channel:

Perception of headphone frequency response curves of equal loudness ISO 226-2009 from Monster Elements Wireless Over-Ear Bluetooth
Channel
Summary (Right + Left)
From level 48 dB at 72 dB SPL in band 100 Hz to 10 kHz, dB
-10,5, +18,7
From level 36 dB at 72 dB SPL in band 100 Hz to 10 kHz, dB
-9,9, +15,7
From level 24 dB at 72 dB SPL in band 100 Hz to 10 kHz, dB
-9,4, +12,6
From level 12 dB at 72 dB SPL in band 100 Hz to 10 kHz, dB
-8,8, +9,6
From level 0 dB at 72 dB SPL in band 100 Hz to 10 kHz, dB
-8,3, +7,2
From level -12 dB at 72 dB SPL in band 100 Hz to 10 kHz, dB
-7,8, +6,5
From level -24 dB at 72 dB SPL in band 100 Hz to 10 kHz, dB
-7,4, +7,5
From level -36 dB at 72 dB SPL in band 100 Hz to 10 kHz, dB
-7,1, +8,5

*Center channel is received by data averaging between the left and right channels




Voltage levels from the load at the output of the amplifier of None 0.00001 as AMP mode
