Monster Elements Wireless On-Ear Bluetooth (Test report)

Test report - general data headphone Monster Elements Wireless On-Ear Bluetooth

Frequency response


Graphics setting view
Range, dB:

General results Monster Elements Wireless On-Ear Bluetooth
Channel
Summary (Right + Left)
Variation in frequency response in band from 100 Hz to 0,01 kHz, dB
-12,47, 5,72

The table shows a most important technical characteristics of Monster Elements Wireless On-Ear Bluetooth

*Center channel headphone is received by averaging between left and right channels

*impedance value in the table for channel

Test conditions

  • Type of headphones: On-ear
  • Measurements were performed on the stand:

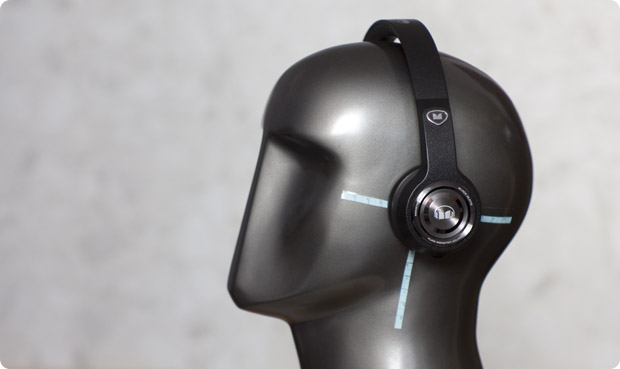

    • with on the simulator of human head with ears HDM-X with natural acoustic damping
  • Calculate headphone's SPL Monster Elements Wireless On-Ear Bluetooth taking into amplifier by online calculator based on table's data
  • Headphone's impedance has not been tested
    • The model use internal headphone amplifier
    • Can be used only with special AMP
    • By other reason
    • The type of acoustic design Closed



Report content

Detailed measurements report of technical characteristics

Frequency response headphone Monster Elements Wireless On-Ear Bluetooth


Graphics setting view
Range, dB:
Channel:

  • Type of headphones: On-ear
  • Measurements were performed on the stand:
    • with on the simulator of human head with ears HDM-X with natural acoustic damping
Frequency response Monster Elements Wireless On-Ear Bluetooth
Channel
Left
Right
Variation in frequency response in band from 100 Hz to 10 kHz, dB
-14,90, 4,82
-10,70, 7,12

Perception of headphone frequency response curves of equal loudness ISO 226-2009 from headphone Monster Elements Wireless On-Ear Bluetooth


Graphics setting view
Channel:

Perception of headphone frequency response curves of equal loudness ISO 226-2009 from Monster Elements Wireless On-Ear Bluetooth
Channel
Summary (Right + Left)
From level 48 dB at 72 dB SPL in band 100 Hz to 10 kHz, dB
-13,4, +17,2
From level 36 dB at 72 dB SPL in band 100 Hz to 10 kHz, dB
-13,2, +14,2
From level 24 dB at 72 dB SPL in band 100 Hz to 10 kHz, dB
-12,9, +11,2
From level 12 dB at 72 dB SPL in band 100 Hz to 10 kHz, dB
-12,7, +8,3
From level 0 dB at 72 dB SPL in band 100 Hz to 10 kHz, dB
-12,5, +5,7
From level -12 dB at 72 dB SPL in band 100 Hz to 10 kHz, dB
-12,3, +5,0
From level -24 dB at 72 dB SPL in band 100 Hz to 10 kHz, dB
-12,1, +6,1
From level -36 dB at 72 dB SPL in band 100 Hz to 10 kHz, dB
-11,9, +7,2

*Center channel is received by data averaging between the left and right channels




Voltage levels from the load at the output of the amplifier of None 0.00001 as AMP mode
