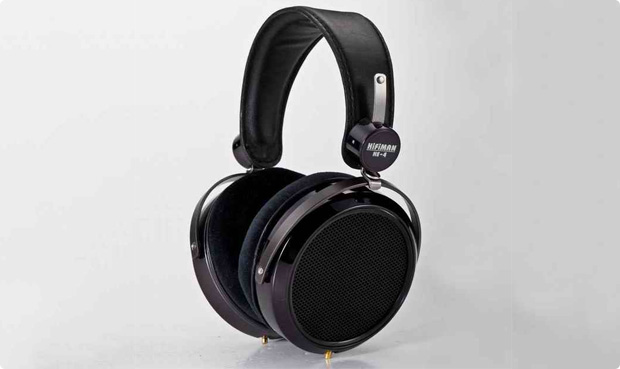

HiFiMan HE-4 Velour (Test report)

Test report - general data headphone HiFiMan HE-4 Velour

Frequency response, Impedance, Frequency response with standard AMPs


Graphics setting view
Stands:
Range, dB:

General results HiFiMan HE-4 Velour
Channel
Summary (Right + Left)
Sensitivity average in band from 100 Hz to 10 kHz, dB/V
87,9
Impedance average in band from 40 Hz to 15 kHz, ohm
62,9
For 94,0 dB SPL need, VRMS
2,026
For 94,0 dB SPL need, mW
65,260

The table shows a most important technical characteristics of HiFiMan HE-4 Velour

*Center channel headphone is received by averaging between left and right channels

Report earlier version
Version report: V1

Reports and testing methodology is gradually updated. We try to generate the report in such a way that it would have been a single kind of report for all devices, convenient for direct comparison.

We constantly introduce new tests and improving the options for displaying graphs and parameters. It introduces different changes in reports. Because reports are generated automatically, the updates do not take much time.

In the development and implementation of new tests, new reports are more complete. To update some charts and tables may require additional time to process the raw data separately for each device.

Some devices require re-testing.


The device was tested for a long time. For a more accurate frequency response, it is necessary to retest at the HDM-X stand. Directly one can compare sensitivity data and impedance characteristics.

This model was tested for a long time and the report does not have the following graphs:

  • Impulse response
  • Step response
  • Impulse Response Envelope (ETC - Energy Time Curve)
  • QSD / Watterfall
  • Delta QSD / Delta Watterfall

The history of the development of the report:
CloseMore detailed
Version report: V1 (Stands: HDM1, SF, SIEC)
  • Frequency response
  • Impedance
  • Sensitivity
  • Electric phase
  • Frequency response of amplifier with constant output resistance
  • Variation in frequency response with amplifiers with constant output resistance
  • Frequency response with an amplifier with zero output resistance and raising of output resistance in low frequencies
  • Variation in frequency response an amplifier with zero output resistance with raising-up of output resistance in low frequencies
  • Perception of headphone frequency response curves of equal loudness ISO 226-2009
Version report: V2 (Stands: HDM-X, SIEC)

Stands HDM1 and SF replaced by HDM-X stand.
Measurements in the extended frequency range 10 - 45000 Hz
  • Impulse response
  • Step response
  • Impulse Response Envelope (ETC - Energy Time Curve)
  • QSD / Watterfall
  • Delta QSD / Delta Watterfall

Test conditions

  • Type of headphones: Over-ear
  • Measurements were performed on the stands:
    • with on the simulator of human head with ears HDM1
    • with soft flat stand SF1
  • Table's data are based on the results from the test stand HDM1
  • Calculate headphone's SPL HiFiMan HE-4 Velour taking into amplifier by online calculator based on table's data
  • Headphone: Mid-impedance
  • The type of acoustic design Open




Report content

Detailed measurements report of technical characteristics

Sensitivity headphone HiFiMan HE-4 Velour


Graphics setting view
Stands:
Channel:

  • Type of headphones: Over-ear
  • Measurements were performed on the stands:
    • with on the simulator of human head with ears HDM1
    • with soft flat stand SF1
  • Table's data are based on the results from the test stand HDM1
Calculate headphone's SPL HiFiMan HE-4 Velour with the amplifier it is possible in an online calculator based on the data in the table

Sensitivity HiFiMan HE-4 Velour
Channel
Left
Right
Sensitivity average in band from 100 Hz to 10 kHz, dB/V
87,4
88,3
Sensitivity at 500 Hz at 1 V, dB
88,7
90,3
Sensitivity at 500 Hz at 1 mW, dB
77,2
78,4
Sensitivity at 1000 Hz at 1 V, dB
87,6
88,9
Sensitivity at 1000 Hz at 1 mW, dB
74,9
75,8

The sensitivity was calculated by data from the measuring stand HDM1



Frequency response headphone HiFiMan HE-4 Velour


Graphics setting view
Stands:
Range, dB:
Channel:

  • Type of headphones: Over-ear
  • Measurements were performed on the stands:
    • with on the simulator of human head with ears HDM1
    • with soft flat stand SF1
  • Table's data are based on the results from the test stand HDM1
Frequency response HiFiMan HE-4 Velour
Channel
Left
Right
Variation in frequency response in band from 100 Hz to 10 kHz, dB
-7,13, 5,68
-6,16, 6,27


The RMS variation between the right and left channels
HiFiMan HE-4 Velour from stand SF1
Deviation between channels in band 40 Hz to 15 kHz, dB
0,5
Deviation between channels in low-frequency range 40 Hz to 200Гц, дБ
0,1
Deviation between channels in mid-frequency range 200 Hz to 2 kHz, dB
0,5
Deviation between channels in hi-frequency range 2 kHz 15 kHz, dB
0,4

Impedance headphone HiFiMan HE-4 Velour


Graphics setting view
Channel:

Impedance HiFiMan HE-4 Velour
Channel
Left
Right
Impedance average in band from 40 Hz to 15 kHz, ohm
62,6
63,2
Resistance at 500 Hz, ohm
62,6
63,2
Resistance at 1000 Hz, ohm
62,6
63,2
The minimum value in band from 40 Hz to 15 kHz at frequency, Hz
10007,7
6878,0
The minimum value in band from 40 Hz to 15 kHz, ohm
62,6
63,2
The maximum value in band from 40 Hz to 15 kHz at frequency, Hz
6307,7
5460,5
The maximum value in band from 40 Hz to 15 kHz, ohm
62,7
63,3

Electric phase headphone HiFiMan HE-4 Velour


Graphics setting view
Range, degree:
Channel:

Electric phase HiFiMan HE-4 Velour
Channel
Left
Right
Average variation in phase response in band from 20 Hz to 20 kHz, degree
0,0
0,1
The minimum value in band from 20 Hz to 20 kHz at frequency, Hz
813,4
704,2
The minimum value in band from 20 Hz to 20 kHz, degree
0,0
0,0
The maximum value in band from 20 Hz to 20 kHz at frequency, Hz
19713,6
19713,6
The maximum value in band from 20 Hz to 20 kHz, degree
0,3
0,6

Frequency response of amplifier with constant output resistance from headphone HiFiMan HE-4 Velour


Graphics setting view
Stands:
Range, dB:
Channel:

Frequency response of headphone HiFiMan HE-4 Velour with amplifier with a constant impedance
Channel
Left
Right
Variation in FR from AMP 0 ohm in band 100 Hz to 10 kHz, dB
-6,78, +8,87
-5,29, +8,03
Variation in FR from AMP 10 ohm in band 100 Hz to 10 kHz, dB
-6,78, +8,87
-5,29, +8,03
Variation in FR from AMP 20 ohm in band 100 Hz to 10 kHz, dB
-6,79, +8,87
-5,29, +8,03
Variation in FR from AMP 50 ohm in band 100 Hz to 10 kHz, dB
-6,79, +8,87
-5,29, +8,03
Variation in FR from AMP 100 ohm in band 100 Hz to 10 kHz, dB
-6,79, +8,86
-5,29, +8,03
Variation in FR from AMP 300 ohm in band 100 Hz to 10 kHz, dB
-6,79, +8,86
-5,29, +8,03

Variation in frequency response with amplifiers with constant output resistance from headphone HiFiMan HE-4 Velour


Graphics setting view
Stands:
Range, dB:
Channel:

Variation in frequency response with amplifiers with constant output resistance from HiFiMan HE-4 Velour
Channel
Summary (Right + Left)
With amplifier impedance at 10 ohm in band 20 Hz to 20 kHz, dB
0,0
With amplifier impedance at 20 ohm in band 20 Hz to 20 kHz, dB
0,0
With amplifier impedance at 50 ohm in band 20 Hz to 20 kHz, dB
0,0
With amplifier impedance at 100 ohm in band 20 Hz to 20 kHz, dB
0,0
With amplifier impedance at 300 ohm in band 20 Hz to 20 kHz, dB
0,0

*Center channel is received by data averaging between the left and right channels


Frequency response with an amplifier with zero output resistance and raising of output resistance in low frequencies from headphone HiFiMan HE-4 Velour


Graphics setting view
Stands:
Range, dB:
Channel:

Frequency response with an amplifier with zero output resistance and raising of output resistance in low frequencies from HiFiMan HE-4 Velour
Channel
Left
Right
Variation in frequency response in band from 100 Hz to 10 kHz, dB
-7,09, 5,72
-6,12, 6,31

Variation in frequency response an amplifier with zero output resistance with raising-up of output resistance in low frequencies from headphone HiFiMan HE-4 Velour


Graphics setting view
Stands:
Range, dB:
Channel:

Variance of frequency response HiFiMan HE-4 Velour depending on the total output resistance of the amplifier with zero resistance and a rise of resistance at low frequencies
Variance frequency response at the frequency 20 Hz, dB
-3,0
Variance frequency response at the frequency 20 Hz, dB
-3,0
Variance frequency response at the frequency 40 Hz, dB
-1,2
Variance frequency response at the frequency 40 Hz, dB
-1,2
Variance frequency response at the frequency 80 Hz, dB
-0,4
Variance frequency response at the frequency 80 Hz, dB
-0,4

Perception of headphone frequency response curves of equal loudness ISO 226-2009 from headphone HiFiMan HE-4 Velour


Graphics setting view
Stands:
Channel:

Perception of headphone frequency response curves of equal loudness ISO 226-2009 from HiFiMan HE-4 Velour
Channel
Summary (Right + Left)
From level 48 dB at 72 dB SPL in band 100 Hz to 10 kHz, dB
-10,2, +12,5
From level 36 dB at 72 dB SPL in band 100 Hz to 10 kHz, dB
-9,1, +9,4
From level 24 dB at 72 dB SPL in band 100 Hz to 10 kHz, dB
-8,0, +8,0
From level 12 dB at 72 dB SPL in band 100 Hz to 10 kHz, dB
-7,0, +7,9
From level 0 dB at 72 dB SPL in band 100 Hz to 10 kHz, dB
-5,9, +7,9
From level -12 dB at 72 dB SPL in band 100 Hz to 10 kHz, dB
-4,8, +8,5
From level -24 dB at 72 dB SPL in band 100 Hz to 10 kHz, dB
-5,6, +9,1
From level -36 dB at 72 dB SPL in band 100 Hz to 10 kHz, dB
-8,4, +9,8

*Center channel is received by data averaging between the left and right channels

Table's data are based on the results from the test stand HDM1
